Description

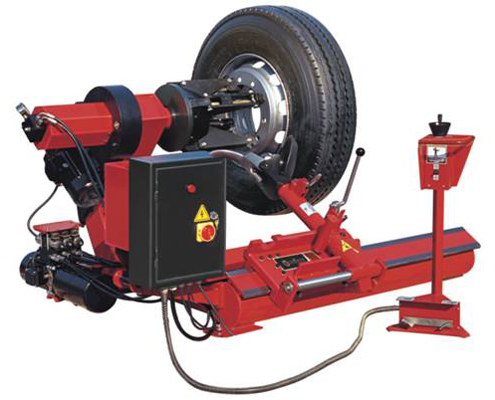

LC588 is an efficient electro-hydraulic-powered tire changer which combines a range of unique features and capabilities to make wheel service for trucks, buses, tractors and other specialized machineries faster, easier and more profitable.
Features
¨ Super-duty electric motor and hydraulic drive for superior torque and wheel holding power.
¨ Self-centering hydraulic clamping chuck.
¨ Heavy, tapered roller bearings, and a dual direction hydraulic motor provide smooth torque.
¨ Quick positioning and locking mount / demount arm.
¨ Hydrualic sliding carriage for positioning, bead loosening, mounting, and demounting procedures.
¨ Single piece frame for superior rigidity.
¨ Massive chuck spindle handles the heaviest loads.
¨ Simple design is easy to be used.
¨ Very gentle on over-the-road tires and tubeless tires mounted on aluminum wheels.
Technical Specifications:
| Pump Motor | 1.1kw 380v-3ph 50Hz 1.5hp |
| Gearbox Motor | 1.8kw 380v-3ph 50Hz 2.4hp |
| Rim Clamping Capacity | 14”-26” |
| Max. Wheel Assembly Diameter | 59” |
| Max. Wheel Assembly Width | 30” |
| Operating Pressure | 50-130bar |
| Noise Level | < 75db |
| Net Weight | 585kg |
| Gross Weight | 800kg |
| Packing Size with Plywood Box (mm) | 2100m×1650×930 |
| Quantity in 20” Container | 6 Units |
| Quantity in 40” Container | 14 Units |
