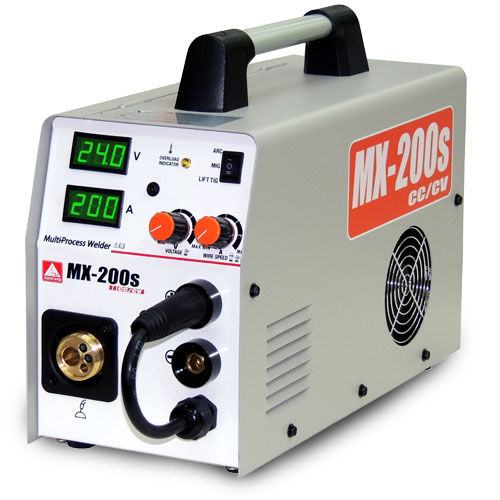

Multi-Process Welders- MX-200s
Features :
★Provides a smooth, spatter-free start. It’s the best-starting machine in the small MIG machine category.
★Voltage control gives you the flexibility to manually set the machine when welding aluminum, stainless steel, or anytime you want to set your own parameters on mild steel
★Thermal overload protection with indicator light helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.
★Inverter-based, DC power source has a simple-to-use operator interface providing only the necessary controls in a compact machine.
![]()
| Processes : | Included : |
|---|---|
| MIG (GMAW) Stick (SMAW) Lift TIG | MX 200s Machine Only Includes:
MX 200s |
Specification
Industrial Applications
Maintenance Repair
Metal Fabrication
Farm / Autobody
Light Industrial
| MODEL MIG 2000s cc/cv | |
|---|---|
| Power Voltage | 1 Phase AC240V ±15% 50/60Hz |
| Input Current | 27A/6.5kVA |
| Output Current | MIG: 30-200A MMA: 30-160A OCV: 65VDC |
| Output Voltage | 15V- 26V |
| Duty Cycle | 40% |
| Weight | 8.5KG |
| Dimensions | D375×H290×W165MM |
| Wire Feed Speed | 1.5-15m/min |
